FPC to FPC

>> Features:

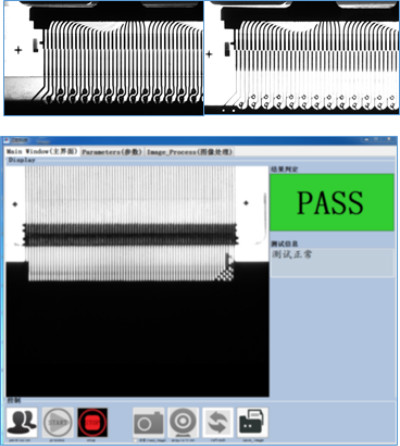

1. The software of the system that Myzy developed consists of image acquisition module, Tag identification module and Interpolation calculation module.

2. Three-axis motion control mechanism was applied to an auto-alignment vision system. An analytic algorithm is employed to calculate the relationship between the rotational center (original position) of the motion control mechanism and the relative coordinates obtained by the CCD camera. With the Δx, Δy and Δθ determined, the automatic motion control mechanism can make rotational and translational movements along the three axes (X, Y1, and Y2) accordingly to compensate for the difference in position and orientation, thus achieving accurate alignment.

3. This can be applied on micro clearance of lead fingers alignment.

a. Case Study:Pitch 0.12mm 220 Pins

b. Alignment Accuracy:< 2 pixels c. Accuracy Rate:>99.9%

d. Alignment Time:<1.2s

4. Software Plateforms: Mac OS & Window

>> Application:

FPC test industries.
