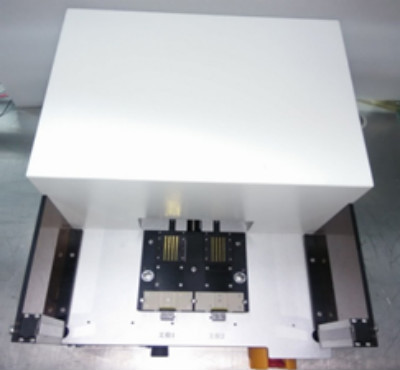

1. This is a test fixture for 90〬bending Flex with 60 connector pins.

2. There is a Y-Axis sliding table ease for operator to load and unload the DUT.

3. For 30 leads/golden fingers on both sides continuity test, Myzy has designed a Gripper to achieve the test requirements.

4. For connectors with pitch 0.35mm and above, normally Pogo Block designed is the first choice.

5. The tester basically used continuity/resistance test, impedance test and Pin to Pin resistance test.

1. Tablet PC Bending Flex test.

2. Mobile phone bending flex test.
